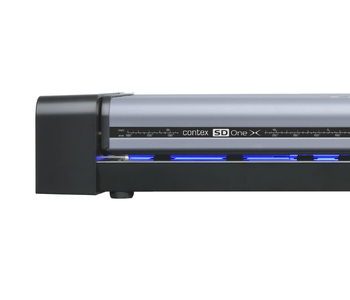

Contex SD One X 36 Superior technology captures maps,drawings, posters and fine art

Contex SD One X 36

Contex SD One X 36
24" Wide Format Scanner


List Price: $4,685.00
Call or Email for Pricing.
Call or Email for quantity discounts



Scan smarter and simpler.

The Contex SD One X 36 is a compact large-format scanner specifically optimized for convenience and occasional in-house use. When paired with optional Nextimage 7 software, this 24-inch scanner exceeds FADGI 3-star compliance, delivering precise and reliable digital capture for engineering diagrams, maps, and large architectural drawings.


Faster

The SD One X 36 delivers practical scanning speeds tailored for everyday office workloads, capturing full-width documents at 4 inches per second (ips) in 200 dpi RGB color and 8 inches per second (ips) in 200 dpi grayscale or monochrome.

Images are moved quickly to your PC workstation via a fast USB 3.0 interface equipped with Contex xDTR3 data acceleration technology.


Smarter

Operation is simple and direct via an intuitive, integrated physical control panel built right into the scanner chassis.

True-to-life color fidelity is managed through sRGB, Adobe RGB, and Device RGB color spaces, utilizing advanced ICC color profile tools in Nextimage 7 powered by industry-standard X-Rite® technology.


Advanced CIS Technology

The scanner utilizes modern CleanScan CIS modules bundled with a dual-sided LED lighting array. This provides clean, even document illumination that naturally minimizes shadows caused by deep creases or surface folds in old documents.







Order Today!

Contex SD One X 36 Wide Format Scanner

Contex SD One X 36 Scanner   Contex SD One X 36 Scanner Contex SD One X 36 Scanner


Canon DR-6030C Scanner Brochure

Other Contex Scanners


The 48-bit CIS technology captures
   every detail from your document, then
   passes up to 48-bit color or 16-bit grayscale
   data through

Scan Speed: up to 4 inches per second
    in RGB color and 8 inches per second
   in grayscale/monochrome at 200 dpi.

Energy Star® version 3.0 compliant
   using only 0.5W in standby mode.














Watch Video Watch Contex SD One X 36 Wide Format Scanner Video



CLICK HERE FOR DRIVERS

  X-Rite Energy Star Certified FADGI

  • Specifications
  • Features
  • Accessories
  • Parts
  • In the box
  • Warranty
Model Contex SD One X 36
Optical Resolution 600 dpi
Enhanced Resolution 9600 dpi (interpolated)
Scanning Technology Contex CleanScan CIS with dual-sided LED lighting and Contex CFR (Color Fringe Removal)
Total Number of Pixels

54,000 pixels

Scan Speed (at max width) 4 ips (200 dpi RGB color) / 8 ips (200 dpi grayscale/monochrome)
Maximum Scan Width 36 inches (914 mm)
Maximum Media Width
39.9 inches (1014 mm)
Maximum Media Thickness 0.03 inch (0.75 mm) flexible documents
Scan Accuracy 0.1% +/- 1 pixel
Data Capture
48-bit color / 16-bit grayscale
Data Output Up to 48-bit color / 16-bit grayscale
Weight and Dimensions (LxWxH) 28.4 lbs. (12.9 kg), 45.7×9.1×4.9 inches (1162×230×124 mm)
Power Consumption 14W Scanning / 5.5W Ready / 0.5W Power Save
Color Space sRGB, Adobe RGB, Device RGB (powered by X-Rite® ICC profiles in Nextimage)
Interface USB 3.0 with xDTR3


Compact Large Format System

  • Specifically optimized for convenience and occasional use in office environments.
  • Scanner operation is easy and streamlined via an intuitive, integrated control panel on the unit.
  • Contex solutions are ready and compatible with leading large-format printers from HP, Océ, EPSON, and Canon to create an efficient copy and share workflow.
  • Equipped with a high-speed USB 3.0 interface featuring xDTR3 data transfer technology.
  • Seamlessly integrates with Nextimage 7 trial (TWAIN driver included, license excluded). It supports upgrading to the full versions of Nextimage Scan & Archive or Nextimage Repro for professional-grade document capture and folder routing.
  • Fully supports Adobe RGB, Device RGB, and sRGB color spaces. The ICC color profile capabilities within Nextimage 7 are powered by industry-leading X-Rite® technology.
  • An environmentally friendly, ENERGY STAR® certified device that balances performance with green operation, consuming a mere 0.5W in power save mode, 5.5W when ready, and 14W during active scanning.
  • Specially engineered to handle large-format documents, architectural maps, engineering diagrams, and construction drawings. It features a maximum scan width of 36 inches (914 mm) and accepts a maximum media width of 39.9 inches (1014 mm).

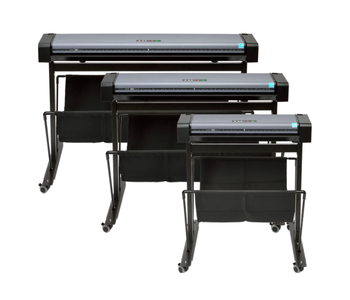

  • Designed for flexible workplace setups with optional low and high stands. The low stand features heights of either 31.2 inches (793 mm) or 33.1 inches (841 mm), while the high stand offers heights of 41.1 inches (1043 mm) or 48 inches (1220 mm).

Contex CleanScan – Leading Quality

The SD One X 36 utilizes Contex CleanScan CIS technology working alongside a dual-sided LED lighting array. This setup delivers stable, sharp imaging quality while patented Contex CFR (Color Fringe Removal) filters out the color artifacts and strobing fringes inherent to typical CIS devices, ensuring reliable and clear results on every project.

The physical chassis is lightweight enough for a single person to easily lift and carry, making it a highly flexible tool to move around the workspace as needed.

Sharp Details in Every Scan

  • Captures architectural and engineering documents with a native optical resolution of 600 dpi.
  • Capable of outputting an enhanced maximum resolution of up to 9600 dpi via software interpolation.
  • The 36-inch model is driven by an image sensor array delivering a total pool of 54,000 pixels.
  • Features deep 48-bit color and 16-bit grayscale data capture, outputting up to 48-bit color or 16-bit grayscale to your digital archive files.
  • Delivers scanning speeds at maximum width of 4 ips in 200 dpi RGB color and 8 ips in 200 dpi grayscale/monochrome.
  • Supports exporting to all major professional raster and vector-friendly file formats, including PDF, PDF/A, TIF, TIF-G3, TIF-G4, JPG, JPEG-2000 (JP2), JPEG2000 Extended (JPX), DWF, CALS, and BMP.

Software
Description Mfg# Price Cart
High Stand, SD One 36'' / 24"
Single-footprint high stand for SD One series 		2200F002002 $680.00 Add
Low Stand, 36" / 24"
Low stand with wheels for 24" and 36" SD One 		2200F001001 $400.00 Add
Low Adjustable Stand, 36" / 24"
Low adjustable stand including document basket 		2200F004004 $680.00 Add
17-inch Touchscreen LCD
For use with IQ 4400, SD and HD Ultra MFP stands 		0090B080R01 $1,494.00 Add
Document carrier sheet
24 x 36 inch carrier sheet landscape 		6399A403 $118.00 Add
USB2.0 Cable with Ferrite, A/B, 3m
5398A009 $121.00 Add
SD One X 36 Accessories
Description Mfg# Price Cart
Zero Turn Scanning Productivity Center
Single footprint holding table + 20” monitor, wireless keyboard and mouse. 		ZTSPC-X4000 $3,395.00 Add
Floor Stand IQ Quattro X 2400 2200H001 $680.00 Add
High Speed Intel PC for Contex HDPC-Plus $1,380.00 Add
Document carrier sheet
18 x 24 inch transparent carrier sheet landscape 		6399A402 $108.00 Add
USB3.0 Cable, A/B, 2m
2867G124 $230.00 Add
Consumables
Description Mfg# Price Cart
Calibration Sheet #2, 24" packed 2898A189 $355.00 Add
Contex Glass Plate 24" 5229D014R01 $195.00 Add
Boards (Electronics)
Description Mfg# Price Cart
SUXD Controller Board
2852D143 $4,980.00 Add
CBUA Board
2852D142 $996.00 Add
CIS Element (1 pcs.)(JJ12H)
2853D133 $485.00 Add
Power Supply #2
0080A074R01 $585.00 Add
Other Parts
Description Mfg# Price Cart
Stepper Motor, STA-42D2014
2853D104 $249.00 Call
CIS Element (1 pcs)(LSH1208)
2853D105 $420.00 Add
Cable Set for CIS Elements (3 pcs)(24'')
2853D107 $234.00 Call
Power Inlet Assy, SD One 24 2853D108 $290.00 Call
Damper Assy. for CIS Bridge, SD One 2853D110 $318.00 Call
Pressure Rollers (SD One)(3 pcs)
2853D115 $365.00 Call
LHS Cover, SD One
2853D111 $268.00 Call
RHS Cover, SD One
2853D112 $285.00 Call
Castors, SD MFP Stand (4 pcs.)
0091A004R01 $192.00 Add
Paper/Lid Sensor (1 pcs.)
Contex Paper/Lid Sensor (1 pcs.) 		0075A160R01 $142.00 Add
USB3.0 Cable, A/B, 2m
2867G124 $230.00 Add
  • Contex SD One X 36
  • Power Supply & Cord
  • USB 3.0 Interface Cable
  • 64-bit TWAIN application driver included for use with EDM and other imaging software
  • User documentation
  • Scanner Maintenance Software
Standard Warranty: 24 months parts only.
Extended Spare Parts Warranty
Description Mfg# Price Cart
3 Year Warranty Extension PRE for Spare Parts
The scanner must be registered within 3 months of delivery. 		2898A124 $750.00 Add
5 Year Warranty Extension PRE for Spare Parts
The scanner must be registered within 3 months of delivery. 		2898A125 $1,440.00 Add
3 Year Warranty Extension POST for Spare Parts
The scanner must be registered within the factory warranty. 		2898A141 $1,120.00 Add
5 Year Warranty Extension POST for Spare Parts
The scanner must be registered within the factory warranty. 		2898A142 $2,200.00 Add

On-Site Warranty
Description Mfg# Price Cart
Onsite Service - 2 years - SD One+, SD One X, SD One MF
Only available at time of purchase with a new SD One X 36 scanner. 		2853D161 $1,390.00 Add
Onsite Extention - 1 year - SD One +, SD One X, SD One MF
1 Year On-site Warranty Extension for products currently under warranty. 		2853D162 $1,640.00 Add

You can also order from Wholesale Scanners by calling 425-748-7155.
