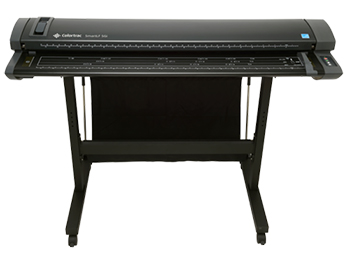

Colortrac SmartLF SGi 36
36" Wide Format Scanner


List Price:
SGi 36m: $9,995.00
SGi 36c: $11,995.00
SGi 36e: $14,995.00

Call or Email for Pricing
.

Call or Email for quantity discounts

The SmartLF SGi series 36" and 44" scanners are perfect for capturing sharply defined detail on technical drawings and maps as well as the vibrant, accurate colors needed by graphics professionals.
SmartLF SGi series large format scanners have all the advantages of CCD technology's superior color imaging - the ability to scan a wide gamut (range of colours) and a high dynamic range (ability to see detail in dark and light areas) - combined with 1200 dpi optical resolution, the highest optical resolution available in any CCD wide format scanner in the market today. This makes them perfect for capturing vibrant, accurate colors for graphics professionals as well as sharply defined line detail on technical documents and maps.
SmartLF SGi scanners use the advanced SureDrive paper transport system to maintain accurate document positioning as the document passes through the scanner. Combining this with the ClearView bright white bi-directional LED illumination system ensures that with SG even folded documents scan accurately and as shadow-free as possible.
Images are scanned using 48-bits (color) or 16-bits (monochrome), with the best 24 and 8-bits selected as image data respectively.


All the benefits of CCD - without the downsides

Traditional CCD scanners have superior color imaging but are disadvantaged by their fluorescent lighting systems. By using white LEDs instead of fluorescent tubes, the SmartLF SGi is able to maximize the benefits of CCD while saving time and energy.


NEW SmartWorks Imaging

Optimized all the way through, SmartWorks Imaging is clearer and easier to navigate than SmartWorks Pro. With a faster performance, revised preset control, better printer drivers and a new multi-page thumbnail pop-out feature, SmartWorks Imaging is the perfect productivity partner for SmartLF SCi and SmartLF SGi large format scanners.

LINK Remote Control

Work smarter with LINK. This portable tablet app works with any computer already connected to the scanner and running SmartWorks Imaging to bring effortless control of the scanner to your fingertips. Use LINK to reduce body movement and to improve operator comfort while scanning.

Simplified thick media system

Thick media operation is now full-time on all SGi series scanners. To raise the lid and increase the thickness capability of the scanner raise the lever on the left-hand side of the scanner lid to its maximum position then load the document manually. Lower the lever to grip the media and begin scanning. All media must be loaded panel-side justified with SGi.







Order Today!

Colortrac SmartLF SC Wide Format Scanner


Colortrac SmartLF SC Scanner     Colortrac SmartLF SC Scanner Colortrac SmartLF SC Scanner


Colortrac SmartLF SGi 36 Wide Format Scanner Brochure

Other Wide Format Scanners


Comes with SmartWorks Touch software

Perfect for any type of document

Accepts thick media up to 15 mm

Designed for high volume











Watch Video Watch Colortrac SmartLF SGi 36 Video




CLICK HERE FOR DRIVERS

  Energy Star Certified Energy Star Certified Fuji Film Lenses

  • Specifications
  • Features
  • Accessories & Parts
  • Flex System
  • In the box
  • Warranty
  SGi 36m SGi 36c SGi 36e
Upgradeable m ➔ c c ➔ e N/A
Optical Resolution 1200 dpi 1200 dpi 1200 dpi
Extended Resolution 9600 dpi (SmartWorks Imaging, SmartWorks Pro), 1200 dpi (SmartWorks Touch)
Max Scan Width 36" 36" 36"
Max Media Width

38"

38" 38"
Max Media Thickness 0.08"/0.59 inches (15 mm) for thick media 0.08"/0.59 inches (15 mm) for thick media 0.08"/0.59 inches (15 mm) for thick media
Max Image Length
JPEG 65535 lines. PDF, TIF any length up to 4 GB
Accuracy +/-0.1% +/-1 pixel +/-0.1% +/-1 pixel +/-0.1% +/-1 pixel
Auto Size Display Detects and displays the width of the document as it is loaded (mm or inches)
Imaging Technology
CCD CCD CCD
Data Capture (color/grayscale) 16-bit 48-bit/16-bit 48-bit/16-bit
Color Space Adobe RGB, Device RGB, sRGB
Scan Speed 1-bit mono (in/sec) 8-bit grayscale @200dpi 13.00 13.00 13.00
Scan Speed color (in/sec) @200dpi N/A 4.0 8.0
Paper Path Face-up, front entry, rear exit or rewind to front Face-up, front entry, front exit with optional Document Return Guide
Interface SuperSpeed USB 3.0 data transfer rates up to 85MB/sec Optimised USB2 transfer rates up to 35MB/sec
Power External power supply 100~240 VAC autosensing +/-10%, 50-60 Hz Scanner 72 W/2.5 W/0.16 W (scanner off, ext. power supply on)
Operating conditions TOP 10oC – 35oC, 35% – 80% RH non-condensing
Weight & Dimensions (LxWxH) Unpacked: 112 lbs (51 kg). Packed: 123 lbs (56 kg), Unpacked: 56×8×18 in (143×21×45 cm). Packed: 62×12×22 in (157×31×57 cm)
Operating System and Interface(s) Windows Server 2019 64-bit, Windows 10 and Windows 8.1, 64-bit and 32 bit
Certifications CE, cUL/UL, CCC, EAC, BIS, FCC Class A, ICES, EMC, VCCI, KC, EuP, WEEE, RoHS, REACH and ENERGY STAR certified
Included Software SmartWorks Touch, SmartConnect (drivers, TWAIN, maintenance)
Optional Software SmartWorks Imaging, SmartWorks Pro



  • SmartWorks Imaging Professional scanning software - NEW
  • LINK remote control app/utility - NEW
  • SingleSensor for reliability and reduced maintenance
  • Colortrac no-nonsense, high-performance, value-for-money large format scanning expertise
  • Software
    Description Mfg# Price Cart
    SmartWorks Pro - SCAN for Colortrac 09A006 $634.00 Add
    SmartWorks Pro - SCAN & COPY 09A008 $1,018.00 Add
    SmartWorks Imaging - SCAN & COPY 9693A004 $1,295.00 Add

    Accessories
    Description Mfg# Price Cart
    Floor stand including catch basket (E Size/A0) SC Series Scanners (SCi 36, 42), & SGi Series Scanners 2200C001 $585.00 Add
    Floor Stand PC Mounting Option for 2200C001 (SCi25, SCi36, SCi42, & SGi Series Scanners) 2200C005 $395.00 Add
    Repro Stand SFP (Single Foot-Print) for SCi36, SCi42, & SGi Series. Includes mounting bracket for PC, Touch Screen and Keyboard. 2200C003 $1,055.00 Add
    Document Return Guide - SmartLF SGi 5800C105 $110.00 Add
    Parts
    Description Mfg# Price Cart
    Calibration and Stitch Target (SG/SGi 36 / 44) 10J050 $58.00 Add
    Camera Board (SG/SGi 36 / 44) 10J001 $124.00 Add
    Control Board (SG/SGi 36 / 44) 10J025 $44.00 Add
    Control Board Bracket (SG/SGi 36 / 44) 10J026 $44.00 Add
    Drive Pulley Pack (SG/SGi 36 / 44) 10J020 $20.00 Add
    Drive Roller Support Bracket (SG/SGi 36 / 44) 10J018 $20.00 Add
    EMC Filter Bracket Sub-Assy (SG/SGi 36 / 44) 10J010 $28.00 Add
    Front Pinch Roller Sub-Assy (SG/SGi 36 / 44) 10J032 $96.00 Add
    Glass Sub-Assy (SG/SGi 36 / 44) 10J023 $208.00 Add
    Hold Down Roller Sub-Assy (SG/SGi 36 / 44) 10J035 $212.00 Add
    LED Board Sub-Assembly (SG/SGi 36 / 44) 10J017 $36.00 Add
    Left Gas Piston Sub-Assy (SG/SGi 36 / 44) 10J046 $28.00 Add
    Lid Hinge Sub-Assy (SG/SGi 36 / 44) 10J049 $48.00 Add
    Lid Latch Pack of 2 (SG/SGi 36 / 44) 10J041 $44.00 Add
    Lid Timing Belt Tension Bar Assy (SG/SGi 36 / 44) 10J036 $40.00 Add
    Main Board (SG/SGi 36 / 44) 10J011 $640.00 Add
    Main Drive Roller (SG/SGi 36 / 44) 10J019 $128.00 Add
    Motor Sub-Assy (SG/SGi 36 / 44) 10J045 $69.00 Add
    Packing (SG/SGi 36 / 44) 10J053 $100.00 Add
    Paper Sensor Front Side Justified (SG/SGi 36 / 44) 10J014 $24.00 Add
    Paper Sensor Front Width Detector Pack of 6 (SG/SGi 36 / 44) 10J015 $88.00 Add
    Paper Sensor Rear Side Justified (SG/SGi 36 / 44) 10J013 $24.00 Add
    Paper Tray Sub-Assy (SG/SGi 36 / 44) 10J022 $160.00 Add
    PCB Tray Sub Assembly (SG/SGi 36 / 44) 10J007 $160.00 Add
    Pinch Roller Pressure Spring (Pack of 2) (SG/SGi 36 / 44) 10J037 $12.00 Add
    Power Cut-off Microswitch Sub-Assy 10J039 $20.00 Add
    Power Microswitch Activation Bracket (SG/SGi 36 / 44) 10J042 $12.00 Add
    Power Socket Sub-Assy (SG/SGi 36 / 44) 10J009 $28.00 Add
    Power Switch Sub-Assy (SG/SGi 36 / 44) 10J008 $12.00 Add
    Pressure Bracket and Spring Pack of 13 (SG/SGi 36 / 44) 10J034 $28.00 Add
    PSU (SG/SGi 36 / 44) 10J052 $44.00 Add
    Raising Lid Gear Pack Sub-Assembly (SG/SGi 36 / 44) 10J029 $16.00 Add
    Raising Lid Handle Sub- Assembly (SG/SGi 36 / 44) 10J028 $60.00 Add
    Raising Lid Lever Kit v1 (SG/SGi 36 / 44)(before L1503240) 10J061 $228.00 Add
    Raising Lid Lever Shaft Assembly (SG/SGi 36 / 44)(after L1503241) 10J062 $124.00 Add
    Raising Lid Ratchet Bracket 10J063 $68.00 Add
    Rear Pinch Roller Sub-Assy (SG/SGi 36 / 44) 10J033 $80.00 Add
    Ribbon Cable (Camera Boards) Kit (SG/SGi 36 / 44) 10J012 $20.00 Add
    Right Gas Piston Sub-Assy (SG/SGi 36 / 44) 10J047 $28.00 Add
    Scanner Foot Pack (SG/SGi 36 / 44) 10J043 $24.00 Add
    Small Parts Pack (SG/SGi 36 / 44) 10J054 $120.00 Add
    Tension Bar Sub-Assy (SG/SGi 36 / 44) 10J048 $56.00 Add
    Thick Media Microswitch Sub-Assy (SG/SGi 36 / 44) 10J016 $16.00 Add
    Thick Media Sensor Switch Bracket Sub-Assy (SG/SGi 36 / 44) 10J038 $28.00 Add
    Timing Belt Kit (SG/SGi 36 / 44) 10J021 $16.00 Add
    Upgrades
    Description Mfg# Price Cart
    Upgrades a SGi 36m to SGi 36c 5800C503 $2,850.00 Add
    Upgrades a SGi 36c to SGi 36e 5800C504 $4,650.00 Add
    Upgrade SGi 36m to SGi 44m 5800C505 $2,175.00 Add
    Upgrade SGi 36c to SGi 44c 5800C506 $2,175.00 Add
    Upgrade SGi 36e to SGi 44e 5800C507 $2,175.00 Add
    Colortrac Flex System
    Description Mfg# Price Cart
    Colortrac Flex/SGi 36C MFP BASE scanner and URS Stand-SFP (single foot print) system rack, document return guide, SmartWorks Pro Scan & Copy, USB3, Integrated 10/100/1000 Gigabit Ethernet, document return guide. 2 year on site warranty 27IPFLX027 $12,995.00 Request Quote
    Colortrac Flex/SGi 36C MFP PRO scanner and URS Stand-SFP (single foot print) system rack, document return guide, SmartWorks Pro Scan & Copy, Rocket Scanner Controller (4GB of RAM, 500 GB hard drive, USB3 (2 ports), USB2 (6 ports), Gigabit Ethernet, Windows 10), Full Size Keyboard & Mouse, 20" Widescreen Flat Panel Display. 2 year on site warranty 27IPFLX028 $13,995.00 Request Quote

    • Colortrac SmartLF SGi 36 Series Wide Format Scanner
    • SmartWorks Touch Software
    • Twain Driver
    • USB 3.0 Cable
    • Power Cord
    Standard Warranty: 2-year on-site Warranty
    Warranty
    Description Mfg# Price Cart
    1 year on-site Colortrac SGi or SG36M 29PGIPW021 $1,695.00 Add
    1 year on-site Colortrac SGi or SG36C 29PGIPW022 $1,895.00 Add
    1 year on-site Colortrac SGi or SG36E 29PGIPW023 $2,395.00 Add
    Extended Warranty Options - Flex Systems
    Description Mfg# Price Cart
    Colortrac Flex SG/SGi 36C Warranty Upgrade - For systems that include a SG/SGi 36C scanner with Rocket for 1-Year 27PIPFWAR13 $2,495.00 Add
