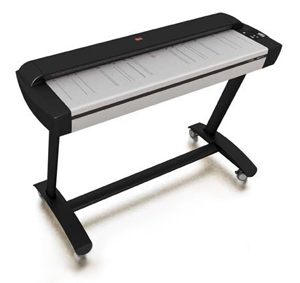

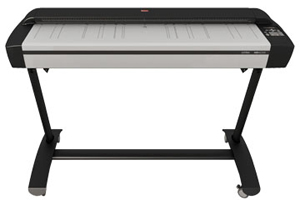

Contex HD4230i

Contex HD4230i
42" Wide Format Scanner


List Price: $15,900.00
Call or Email for Pricing
.

The HD4230i features four 48-bit color 4-channel CCD cameras that supply 120,000 pixels of information to an all-new, on-board image processing engine. The scanner can be directly connected to the PC using the USB interface or can be shared on the network via the LAN interface.

Like all HD4200i series scanners, the HD4230i provides industry-leading scanning speeds and ultra-sharp resolution. But this scanner also has an on-board PC with installed software, providing the ability to scan directly to a local PC, a network PC, or a large format printer. It even has built-in maintenance software to preserve perfect image quality.

If you need a scanner that provides the ultimate connectivity with speed and reliability, the HD4230i is not just the best choice - it's the only choice.

Expand your business opportunities with Contex’s versatile HD4230i scanners featuring advanced technology and quality imaging for color and monochrome scanning. The 42” imaging area is designed to facilitate archival and reprographic tasks with a wide variety of large technical documents, detailed maps and drawings, or color posters and architectural sketches – all at the highest resolution and speed. You get exceptional professional-grade performance with 600dpi optical resolution with speeds of up to 12 inch/second.

With uncompromising image quality standards, the Contex HD4230i series is designed for high-volume productivity for businesses-critical imaging tasks. Whether you are a private business, government or print-for-pay, Contex’s range of HD4230i scanners is the right solution for improved efficiency and productivity.


Image Quality Without Compromise

With 600dpi optical resolution, the combination of highly sensitive 4-channel CCD cameras and full-sized high-quality camera lenses, HD4230i scanners provides the best image quality available in wide format scanning. With image processing performed inside the scanner, your PC is free to run software more efficiently.

Speed When You Need

Contex HD4230i wide format scanners are the fastest in the business with up to 12 inch/second scanning speeds. With three unique HD4200 models in six different configurations, choosing the right blend of speed and connectivity for your business is simple.









Order Today!
Contex HD4230i Scanner

Contex HD4230i Scanner
Contex HD4230i Scanner   Contex HD4230i Scanner   Contex HD4230i Scanner


Contex HD4230i Scanner Brochure

Other Contex Scanners


600dpi optical resolution standard

48-bit color and 16-bit grayscale image data
   capture from high quality CCD technology

Color calibration to sRGB color space

Ultra fast USB 2.0 interface with xDTR (Extended
   Data Transfer Rate)

On-board Image Processing: Built-in Sharpen, Blur
   Descreen, Error Diffusion, Adaptive Thresholding

Scan-to-Net function for scanner sharing over
   a network, and sending files to remote PCs












CLICK HERE FOR DRIVERS

  Energy Star Certified

  • Specifications
  • Features
  • Accessories
  • Parts
  • In the box
  • Warranty

Model Base Plus
Resolution 600dpi 600dpi
Enhanced resolution 1200dpi 9600 dpi
Maximum Scan Width 42in. (1067mm) 42in. (1067mm)
Maximum Media Width 44in. (1118mm) 44in. (1118mm)
Maximum Media Thickness 0.6in. (15mm) 0.6in. (15mm)
Accuracy 0.1% ± 1 pixel 0.1% +/- 1 pixel
Data Capture (color/mono) 48-bit/16-bit
Color Space sRGB
Scanning Speed (inch/sec.)
400dpi (Turbo) 24-bit RGB Color 0.6 1.0
400dpi (Turbo) 8-bit Index Color 3.0 3.0
400dpi (Turbo) 8-bit Grayscale 12.0 12.0
400dpi (Turbo) 1-bit Monochrome 12.0 12.0
Interface
High Speed USB 2.0 Yes
Ethernet (LAN) port & Remote HTML Control Yes
Power, Requirements 110/220/240V, 60/50cs, 180W
Weight / Dimensions (LxWxH) 61 kg / 55” x 15” x 7” inches (139 x 48 x 18 cm)
Host Platform/Device Drivers Windows XP, Server 2003, Vista (32-bit only)
Certifications Energy Star, RoHS, UL, CE, GOST-R, CCC


  • LAN and dual-USB interface provides multi-functionality
  • 120,000 pixels and 0.1% +/-1 pixel accuracy
  • One-touch scanning to any computer on your network
  • Maximum color precision with 48-bit color capture
  • ENERGY SAVER and RoHS Compliant
Software
Description Mfg# Price Cart
Nextimage SCAN
Contex Scanner Software
9691A040 $569.00 Add
Nextimage SCAN+COPY
Contex Scanner Software
9691A057 $1,219.00 Add
Nextimage SCAN+COPY UPGRADE (requires SCAN license installed)
Contex Scanner Software
9691A058 $900.00 Add
JETimageNET Copy Software
Contex Scanner Software
9691A053 $1,617.00 Add
HD Upgrade (BASE to PLUS)
Description Mfg# Price Cart
Upgrade Kit
Contex Scanner Accessory
6799E105 $1,219.00 Add
Floor Stands
Description Mfg# Price Cart
Floor Stand incl. Document Basket for 36" and 42" Scanners
Contex Scanner Accessory
2200D020 $723.00 Add
MFP - Related
Description Mfg# Price Cart
HD MFP stand:
Special "Repro" low-stand only (compatible with HD3600 and 4200)
Contex Scanner Accessory
2200D037 $809.00 Add
HD MFP Kit with Touchscreen:
Inlcudes special "Repro" stand, Nextimage TOUCH (English),
JETimage (all other languages), and 17-inch touchscreen
Contex Scanner Accessory
2200D037B07 $2,271.00 Add
HD MFP Kit:
Inlcudes special "Repro" stand, Nextimage TOUCH (English),
JETimage (all other languages)
Contex Scanner Accessory
2200D037B09 $2,495.00 Add
17-inch Touch-screen LCD:
packed without table stand - for use with MFP stands
Contex Scanner Accessory
0090B080R01 $745.00 Add
MFP Software
Description Mfg# Price Cart
Nextimage TOUCH with Touchscreen:
Nextimage TOUCH software (English-only) and 17- inch
Touchscreen (0090B080R01)
Contex Scanner Accessory & Software
9691A076 $1,800.00 Add
Nextimage SCAN+COPY/TOUCH
Contex Scanner Accessory & Software
9691A075 $1,500.00 Add

Consumables
Description Mfg# Price Cart
Calibration Sheet, 42", packed 6799D171 $298.00 Add
Focus Pattern, 40"
6779D216R01 $209.00 Add
Filter kit, 92x92 (for 0080C032)
Contex Filter kit, 92x92
0080C031R01 $41.00 Add
Glass Plate, 42", packed
Contex Glass Plate, 42", packed
6729D187R01 $501.00 Add
LCAB, Lamp Cartridge, 42"
6840A002R01 $684.00 Add
White Background Plate #1, 42", packed
6729D505R01 $108.00 Add
Optical Adjustment Pattern, 4C42"
6779D144R01 $1,241.00 Add
Adj. Tools for Roller Sensor (2 pcs.)
6779D133R01 $93.00 Add
Adj. Tools for Top Pos. Sensor (2 pcs.)
6779D246R01 $231.00 Add
SCA Tool (set of 2 pcs.)
2898A106R01 $81.00 Add

Boards (Electronics)
Description Mfg# Price Cart
CBMA Camera Board (with CCD-Sensor and Mounting Plate)
6749D001R01 $1,172.00 Add
CRBC, Smart Card Reader
6831A003R01 $262.00 Add
CTX-Z07H, 68W SMPS, Triple Output
0080A064R01 $353.00 Add
LMFA, Lamp and Motor Driver Board
6834A001R01 $1,042.00 Add
MDAC, Elevation Motor Driver Board
6738D003R01 $719.00 Add
Scanner Storage
0090B084R01 $863.00 Add
SKFA, Operator Panel (Note: SKFA04 or later for KC67E)
6836A001R01 $709.00 Add
SUGA, Controller Board
6736E001R01 $4,134.00 Add
Other Parts
Description Mfg# Price Cart
Camera, Adj., 600dpi (excl. Lens, CBx board and Motor)
2898A114 $747.00 Add
Camera, Fixed, 600dpi (excl. Lens and CBx board)
2898A113 $650.00 Add
Focus Pattern, 40"
6779D216R01 $209.00 Add
Optical Adjustment Pattern, 36", 3 Cam.
6779D138R01 $1,241.00 Add
Adj. Tools for Roller Sensor (2 pcs.)
6779D133R01 $93.00 Add
Adj. Tools for Top Pos. Sensor (2 pcs.)
6779D246R01 $231.00 Add
Castor w/o Brake for Scanner Bogie
2205A109R01 $49.00 Add
Castor with Brake for Scanner Bogie
2205A110R01 $51.00 Add
Feed-Rollers #1, 42" (2 pcs.)
6729D185R02 $1,691.00 Add
Connector Cover (Dark Grey)
6702E007R01 $57.00 Add
Cooling Fan, 92x92 mm
Contex Cooling Fan, 92x92 mm
0080C032R01 $89.00 Add
End Cover (Right Hand Side)
6702D285R01 $185.00 Add
End Cover (Left Hand Side)
6702D259R01 $197.00 Add
End Cover (Left Hand Side) (Dark Grey)
6702E005R01 $171.00 Add
End Cover (Right Hand Side) (Dark Grey)
6702E036R01 $185.00 Add
Gas Spring, 150N A40 (Guide Plate)
6705D264R01 $100.00 Add
Fixing Screw for Scanner (10 pcs.)
2205A211R01 $85.00 Add
Exit Paper Sensor, assy
6729D198R01 $104.00 Add
Paper Guides (Dark Gray) (2 pcs.)
6702E003R01 $57.00 Add
Power Entry Module
6738A122R01 $79.00 Add
Lamp Cartridge Cover (Dark Grey)
6702E006R01 $57.00 Add
Optointerrupter
0075A050R01 $55.00 Add
RFI-Filter
0077E038R01 $91.00 Add
Stitching Wire Kit
6375E801R02 $67.00 Add
Stepper Motor
0080C018R01 $215.00 Add
USB2.0 Cable, A/B with Ferrite
6799D172R01 $63.00 Add
SCA Tool (set of 2 pcs.)
2898A106R01 $81.00 Add
Vibration Grommet for Motor (10 pcs.)
6763D201R01 $93.00 Add
Connector Cover for 6702D258
6702D277R01 $102.00 Add
Elevation Motor, ATAC, 42"
6736D173R01 $847.00 Add
Gas Spring, 50N (ATAC) (2 pcs.)
6729D414R01 $199.00 Add
Lamp Cartridge Cover for 6702D258
6702D276R01 $67.00 Add
Original Guide Plate wo Top Profile, 42" (ATAC)
6729D502R01 $3,277.00 Add
Original Guide Plate wo Top Profile, 42" (ATAC) (Dark Grey Inlet Rail)
6729E008R01 $3,277.00 Add
USB2.0 Cable, 0.5m
0090B075R01 $59.00 Add
USB2.0 Cable, A/B, 3m
0090B068R01 $51.00 Add
UTP Cat5e Cable, 5m, Black
0090B070R01 $59.00 Add
UTP Cat5e Cable, Cross-Over, 5m, Black
0090B071R01 $59.00 Add
  • Contex HD4230i
  • 6 ft power cable
  • Drivers
  • User documentation
  • WIDEsystem scan to net software
  • 24 Months Return to Depot Warranty
  • With first six months on-site warranty
  • Scanner Maintenance Software
  • Maintenance Sheet
Standard Warranty: 24 month onsite. Distributor invoiced at time of registration. Must be registered within 30 days of sale.
On-Site Post Warranty
Description Mfg# Price Cart
Third year coverage
(add on to two year standard warranty) at time of scanner purchase
3YR-ADD $1,095.00 Add
Third and Fourth year coverage
(add on to two year standard warranty) at time of scanner purchase
4YR-ADD $1,840.00 Add
Third, Fourth and Fifth year coverage
(add on to two year standard warranty) at time of scanner purchase
5YR-ADD $2,685.00 Add
One year onsite warranty extension
Purchased after the initial scanner order, but before any
pre-existing onsite warranty expires, includes renewals.
EXTEND-ADD $1,295.00 Add
One year onsite post warranty
Use this option for cases where all warranty contracts have
expired and the end-user desires to purchase a onsite warranty.
POST-ADD $1,395.00 Add
