30,000 |
| Resolution |
400 dpi |
| Enhanced resolution |
600 dpi |
| Scanning speed in 400 dpi turbo |
3.0"/s in 24-bit RGB
3.0"/s in 8-bit index
5.0"/s in graytone and B/W |
| Scan accuracy |
Maximum scan width: 18" x 24" (457 x 610 mm) |
| Maximum thickness |
Without top cover: unlimited; with top cover: 1.5" (38 mm) |
Digital image processing
|
Dual 2-D adaptive enhancement and adaptive gray |
| Embedded in hardware |
Color feature extraction, ADL and error diffusion halftoning
2-D sharpening, softening, blur filter and adaptive thresholding |
| iJET technology |
One-touch copy directly to USB or network printer
One-touch scan directly to USB, harddisk or network PC |
Scan modes
|
24-bit color, 8-bit feature extraction/indexed color
8-bit graytone, copy modes with graytones
1-bit B/W, B/W dual 2-D adaptive modes |
Color adjustment
|
3x3 matrix multiplier, independent RGB tone curves (gamma), independent B/W point setting |
| Color space |
NTSC and sRGB |
| Sensors |
4-linear CCD (RGB triplets and panchromatic B/W)
48-bit color data capture, 16-bit graytone data capture, all-digital cameras |
Auto-maintenance system
|
Auto alignment, stitching monitoring and correction, basic and precision color calibration |
Interface
|
Ethernet, 3x USB2 (high-speed), STI (Still Image Interface), WIA (Windows Image Acquisition), TWAIN |
Weight/dimension/power
|
37 kg, L x W x H (ship) (57" x 30" x 20") (144 x 76 x 50 cm)
110V / 220V / 240V, 60/50 cs, 180W |
| System software |
Included: WIDEsystemNET tools: scanner drivers, maintenance and utilities |
| Host platforms |
Windows and Power Macintosh |
-

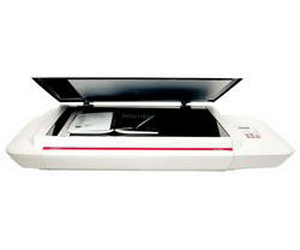

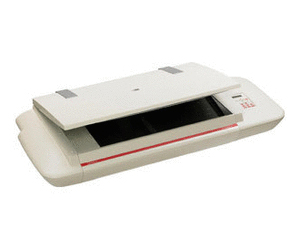

Flatbed design for delicate or thick materials, up to A2 size (18” x 24”)
-
Fast 48-bit color, 4-channel CCD imaging
-
High-speed monochrome scanning for archiving books, newspapers, and more
-
LAN interface and multi-function capabilities with iJET Technology
| Description |
Price |
|
WIDEimage Software
|
$805.00 |
|
JET image PRO Software
|
$1,617.00 |
- 6 ft power cable
- Drivers
- iJET technology
- User documentation
- WIDEsystem scan to net software
- 24 Months Return to Depot Warranty
- With first six months on-site warranty
- Scanner Maintenance Software
- Maintenance Sheet
Standard Warranty:24 Months Return to Depot Warranty with first six months on-site warranty.
For all scanners purchased in the U.S and Canada after July 1, 2002 Contex grants a warranty for 24 months. Parts, which are affected by normal wear and tear (glass plates, white background plates, lamps, belts, rollers), are not covered by any warranty.
In addition Contex offers on-site warranty coverage that may be extended for up to a total of five years. Please contact your local distributor for further information and details.
Help Desk support is also included for immediate answers to software and hardware questions, Monday-Friday 8:00 a.m. to 5:00 p.m., local East to West Coast time by calling (800) 328-5901.
Optional service offerings include: on-site installation services, software and hardware training, a depot repair facility and additional standard time and material service, all at very affordable prices.
|
